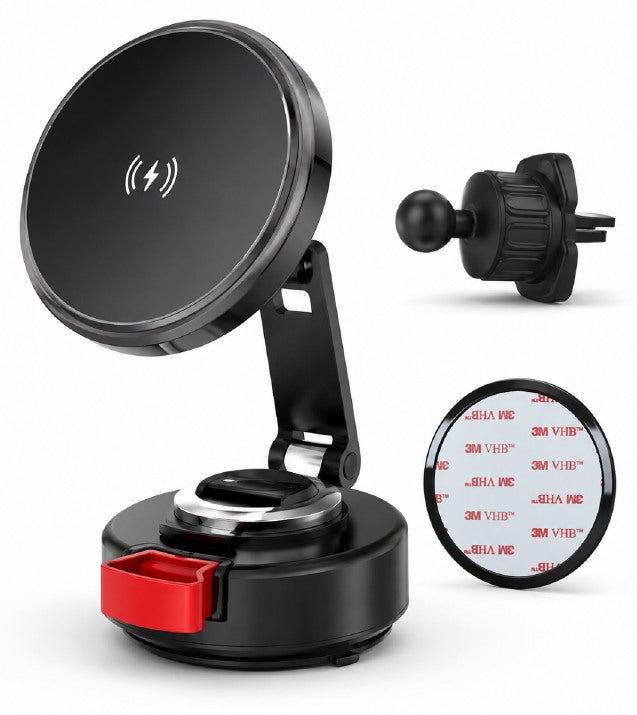

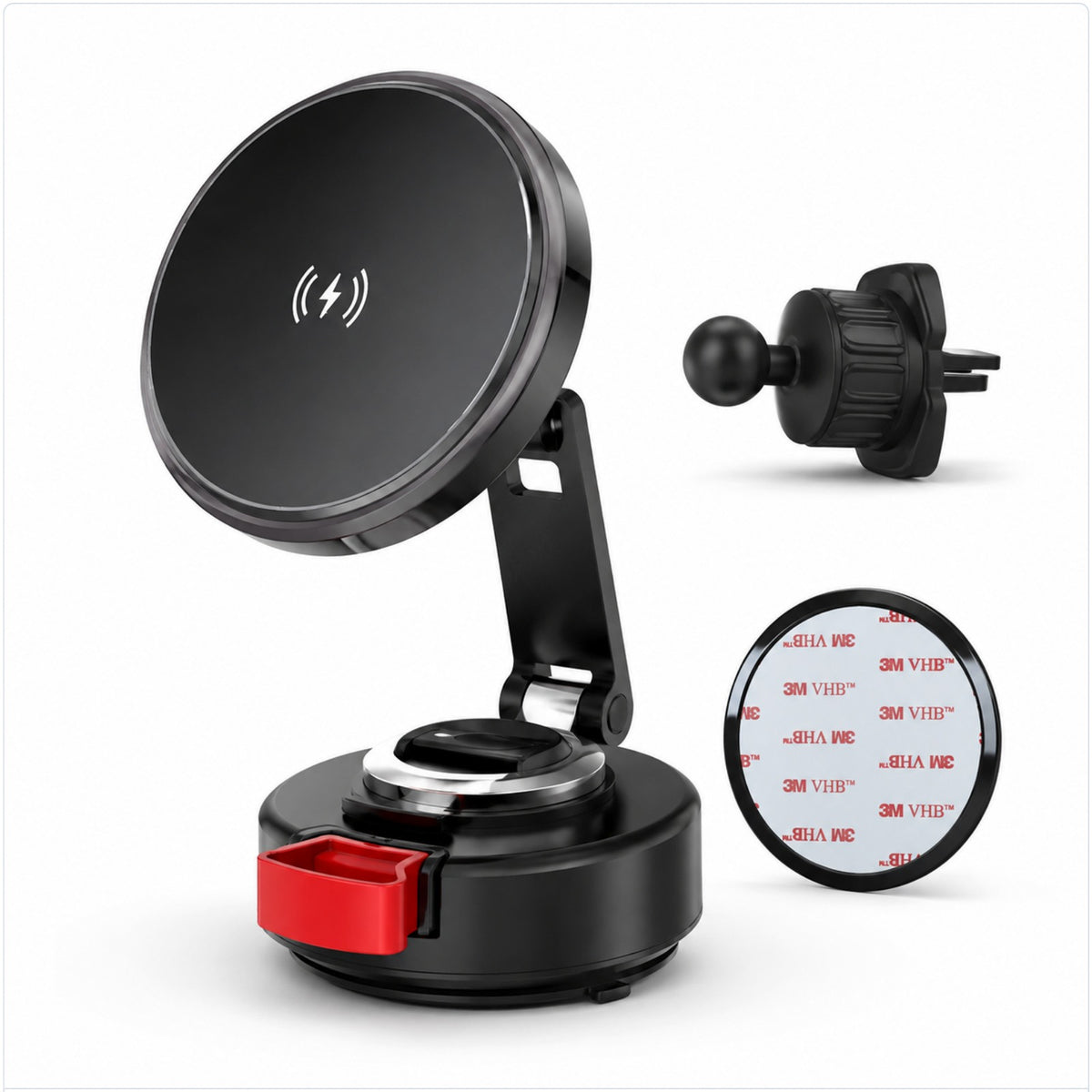

The MobileMatrix SW182 is a magnetic wireless charging car mount with up to 25W output listed in the PO,
a rotating 2-in-1 dashboard/windshield and air-vent design, 1m Type-C to Type-C cable, and secure suction/
vacuum mounting.
Full Description
The MobileMatrix SW182 combines magnetic phone mounting with wireless charging for customers who want one
accessory for phone positioning and charging in the car. It uses a round tempered-glass charging face, black PC +
ABS housing, a rotating dashboard/windshield suction base, and an air-vent mounting accessory.
The SW12 5W, 7.5W, 10W, 15W, and 25W output levels, 30W rated input power, Qi wireless protocol support, a
1m Type-C to Type-C charging cable, and 2 - 5mm charging distance. The supplier also notes that a PD3.0 charger
can be used only, so the final product page should include a clear adapter requirement note.
For mounting, the SW182 uses magnetic attachment, a 360-degree rotatable base, high-temperature adhesive with
vacuum lock support, a 270-degree dual-axis connecting rod, and a spiral telescopic mechanism with anti-slip
silicone and widened metal hook
Key Features
Magnetic wireless charging car mount
2-in-1 dashboard/windshield and air-vent mounting
Output power listed as 5W / 7.5W / 10W / 15W / 25W
30W rated input power
Qi wireless protocol support
1m Type-C to Type-C charging cable
2 - 5mm charging distance
360-degree rotatable base
Dual-axis connecting rod adjusts up to 270 degrees
High-temperature adhesive and vacuum-lock support
Specs
Commodity: Car Wireless Charging Magnetic Rotating Dashboard/Windshield/Air Vent 2-in-1 Phone Mount
Color: Black
Material: PC + ABS + tempered glass
Surface Finish: Tempered glass
Net Weight: 240g
Charging Magnetic Size: 67 x 67 x 40mm
Input Voltage/Current: 5V/3A, 9V/3A, 15V/3A
Output Power: 5W / 7.5W / 10W / 15W / 25W
Rated Input Power: 30W
Charging Cable: 1m Type-C to Type-C
Transmission Efficiency: TE ≥ 86%
Charging Distance: 2–5mm
Wireless Charging Solution: Convenientpower WB8128
Protocol: Qi wireless protocol; PD3.0 charger required per PO
Clamping Range: 10–31mm
Adhesive Gasket Size: 80mm diameter
Adjustment: Dual-axis connecting rod adjusts up to 270 degrees
